5 Intersecting Octahedra Model

Here I give the details for building a model of the 5 intersecting Octahedra.

Figure 1 5 Intersecting Octahedra.

One of the reasons that this is an interesting model is because the edges of the 5 intersecting Octahedra intersect each other to define additional vertices. These additional vertices define an Icosahedron and a Dodecahedron.

Figure 2 Icosahedron in the 5 Intersecting Octahedra matrix.

Figure 3 Dodecahedron in the 5 Intersecting Octahedra matrix.

It is known that the Dodecahedron vertices also define 5 Cubes and 10 Tetrahedra.

In order to build this model, we need to divide the Octahedrons' edges into 3 segments. That is, we need to introduce 2 additional hubs along the Octahedrons' edges.

We therefore need to calculate the location of these new huds along the Octahedrons' edge length.

Consider just 1 of the Octahedra and the Icosahedron.

Figure 4 Octahedron and Icosahedron.

The triangular face of the Icosahedron is in the same plane as one of the Octahedron's faces. Therefore, the distance from the center of volume to the face center of both the OCtahedron and the Icosahedron are the same. From the Polyhedra Encyclopedia we have


Setting these equation equal to one another gives

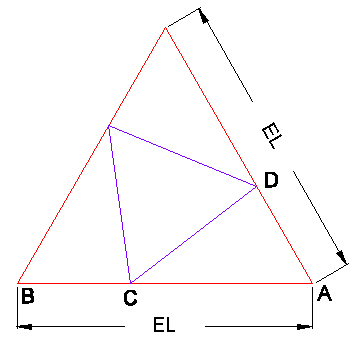

Figure 5 Octahedron and Icosahedron
triangle layout.

Consider the triangle ACD. We want to know the edge length AC. We know that the edge length AD is (EL - AC) (because the Icosahedron and Octahedron triangles are both centered on the same point) and that the edge length CD is the Icosahedron edge length. We also know that the angle C.A.D is 60 degress.

We can use the Law of Cosines for the triangle ACD to calculate the length AC.

We set the edge length of the OCtahedron to be 1. Then AC will be a length factor. We get


we can write

To evaluate the left hand side, we first calculate

We then get

Next we GUESS that

We put this into the right hand side of the above equation and see if it equals the left hand side.

We get

which does equal the left hand side of the above equation.

Thus we have shown that the length AC is

Next we need to calculate the location of the Dodecahedron vertex along the Octahedrons' edges.

Figure 6 Dodecahedron vertices
along Octahedron edge.

Note that the vertices of the Dodecahedron form another triangle in the plane of the Octahedron's face.

Figure 7 Another triangle.

If we put back the Icosahedron for a minute, we see that the relation between the Icosahedron triangle and the Dodecahedron formed triangle.

Figure 8 Dodecahedron and Icosahedron triangle
in the Octahedron triangle.

It turns out that the Dodecahedron triangle is rotated by 60° to the Icosahedron triangle. See the details here.

Figure 9 60 Degree difference.

I haven't found a quick way to calculate the location of the Dodecahedron vertex along the Octahedron edge using this information, so I will use a vector coordinate method instead.

Consider 2 Octahedra intersecting each other.

Figure 10 Octahedra and Dodecahedron
with vertex labels.

The vertex coordinates are given here .

We have (with P = Golden Ratio, and P^n = to the nth power)

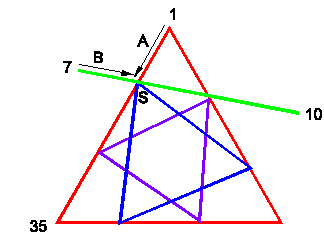

Figure 11 Vector and Vertex labels
for intersecting point "S".

Vector A is then V35 - V1. We get

A = (0, -2(P+1), -2(p+1)) = (0, -2P - 2, -2P - 2)

Vector B is given by V10 - V7 which is

B = (P^3 + P, P + P^2, P^2 - P^3) = (3P + 1, 2P + 1, -P)

We want to reduce the length of the vectors A and B by some factor "k" such that they end at the intersection point. This is given by the equations

V1 + kA = V7 + kB = S = intersection point

Looking at just the x-coordinate, we have the equation

V1X + k(AX) = V7X + k(BX)
0 + k (0) = -P + k (3P + 1)
k = P / (3P + 1)

This is the length factor by which the Octahedron's edge length is reduced to give the location of the Dodecahedron's vertex.

Figure 12 Length factors for intersection points

We end up with

Length along edge to Icosahedron = (1/P)ELOCTA = 0.618033988 ELOCTA

Length along edge to Dodecahedron = P/(3P+1)ELOCTA = 0.276393202 ELOCTA

With this information, we can cut the struts of the Octahedron and insert sphere hubs.

The edge segment factors are then

A 2 - P 0.381966011
B 2/(3P+1) 0.341640786
C P/(3P+1) 0.276393202

Don't forget to adjust for the radius of the hubs.
